공굴리기 통신 (socket통신)

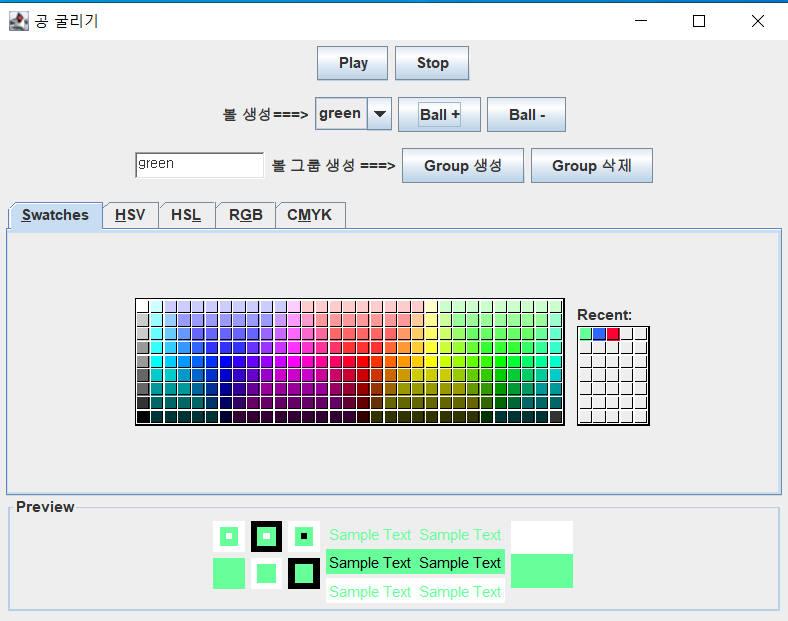

버튼 뷰

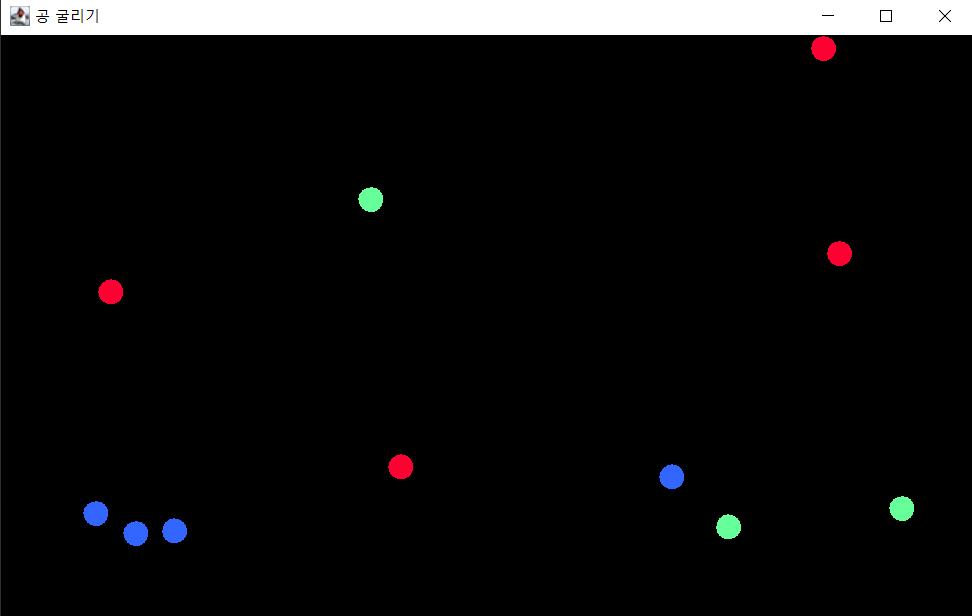

볼 그리기





하나의 프로그램이었던 공 굴리기 프로젝트를 두 개로 나누어서 소켓을 이용한 통신으로 만들어봤다.





소스코드



rollingBallClinet 프로젝트





SendingMessageThread.java

package ball.client;

import java.io.BufferedWriter;
import java.io.OutputStreamWriter;
import java.net.Socket;



public class SendingMessageThread extends Thread{

    private Socket rollingBallSocket;

    private String orderMessage;
    private int    selectedColorMessage;
    private String selectedBallGroupNameMessage;
    private String newBallGroupNameMessage;

    private boolean isWindowClosed;

    @Override
    public void run() {

        super.run();
        try {

            BufferedWriter sendingMessageBuffer = new BufferedWriter(new OutputStreamWriter(rollingBallSocket.getOutputStream()));
            while(true) {

                if(orderMessage==null)
                    Thread.sleep(1);

                else if(orderMessage!=null) {
                    sendingMessageBuffer.write(orderMessage+" "+selectedColorMessage+" "
                                                +newBallGroupNameMessage+" "+selectedBallGroupNameMessage);
                    sendingMessageBuffer.newLine();
                    sendingMessageBuffer.flush();
                    orderMessage=null;
                }

                if(this.isWindowClosed) {
                    break;
                }

            }
            sendingMessageBuffer.close();
            rollingBallSocket.close();

        }catch (Exception e) {
            e.printStackTrace();
        }

    }

    public void setWindowClosed(boolean isClosed) {
        this.isWindowClosed = isClosed;
    }

    public void setSocket(Socket socket) {
        this.rollingBallSocket = socket;
    }

    public void setOrderMessage(String orderMessage) {
        this.orderMessage = orderMessage;
    }

    public void setSelectedColorMessage(int selectedColorMessage) {
        this.selectedColorMessage = selectedColorMessage;
    }

    public void setSelectedBallGroupMessage(String selectedBallGroupNameMessage) {
        this.selectedBallGroupNameMessage = selectedBallGroupNameMessage;
    }

    public void setNewBallGroupNameMessage(String newBallGroupNameMessage) {
        this.newBallGroupNameMessage = newBallGroupNameMessage;
    }


}




ButtonActionListener.java

package ball.controller;

import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;

public class ButtonActionListener implements ActionListener{

    private Core core;

    public ButtonActionListener(Core core) {
        this.core = core;
    }

    @Override
    public void actionPerformed(ActionEvent e) {

            String actionCommand = e.getActionCommand();

            if(actionCommand == "Play")
                core.clickedPlay();
            else if(actionCommand == "Stop")
                core.clickedStop();
            else if(actionCommand == "Ball +")
                core.clickedAddBall();
            else if(actionCommand == "Ball -")
                core.clickedDeleteBall();
            else if(actionCommand == "Group 생성")
                core.clickedCreateBallGroup();
            else if(actionCommand == "Group 삭제")
                core.clickedDeleteBallGroup();

        }

}




Core.java

package ball.controller;

import java.net.Socket;

import ball.client.SendingMessageThread;
import ball.view.RollingBallView;

public class Core {

    private RollingBallView                     rollingBallView;
    private SendingMessageThread                 sendingThread;

    public static final int WIDTH = 480;
    public static final int HEIGHT = 480;

    public Core() {
        rollingBallView = new RollingBallView();

        this.init();
        this.start();
    }


    private void init() {
        rollingBallView.registerButtonListener(new ButtonActionListener(this));
        rollingBallView.registerWindowListener(new WindowClosingListener(this));
    }

    private void start() {

        try {
            Socket rollingBallSocket = new Socket("10.0.13.47",8884);

            sendingThread = new SendingMessageThread();
            sendingThread.setSocket(rollingBallSocket);

            sendingThread.start();

        }catch (Exception e) {
            e.printStackTrace();
        }
    }

    public void clickedPlay() {
        if(rollingBallView.getGroupCount()!=0) {
            sendingThread.setSelectedBallGroupMessage(rollingBallView.getSelectedGroup());
            sendingThread.setOrderMessage("play");
        }
    }


    public void clickedStop() {
        if(rollingBallView.getGroupCount()!=0) {
            sendingThread.setSelectedBallGroupMessage(rollingBallView.getSelectedGroup());
            sendingThread.setOrderMessage("stop");
        }
    }

    public void clickedAddBall() {
        if(rollingBallView.getGroupCount()!=0) {
            sendingThread.setSelectedBallGroupMessage(rollingBallView.getSelectedGroup());
            sendingThread.setOrderMessage("addBall");
        }else
            System.out.println("그룹을 만드세요");
    }

    public void clickedDeleteBall() {
        if(rollingBallView.getGroupCount()!=0) {
            sendingThread.setSelectedBallGroupMessage(rollingBallView.getSelectedGroup());
            sendingThread.setOrderMessage("deleteBall");
        }
    }

    public void clickedCreateBallGroup() {
        sendingThread.setSelectedColorMessage(rollingBallView.getSelectedGroupColor().getRGB());
        sendingThread.setNewBallGroupNameMessage(rollingBallView.getNewBallGroupName());
        sendingThread.setOrderMessage("createBallGroup");
        rollingBallView.addGroup(rollingBallView.getNewBallGroupName());
    }

    public void clickedDeleteBallGroup() {
        if(rollingBallView.getGroupCount()!=0) {
            sendingThread.setSelectedBallGroupMessage(rollingBallView.getSelectedGroup());
            sendingThread.setOrderMessage("deleteBallGroup");
            rollingBallView.removeGroup();
        }else
            System.out.println("삭제할 그룹이 없습니다");
    }

    public void clickedWindowClose() {
        if(sendingThread!=null)
            sendingThread.setWindowClosed(true);
    }

    public static void main(String[] args) {
        new Core();
    }



}




WindowClosingListener.java

package ball.controller;

import java.awt.event.WindowEvent;
import java.awt.event.WindowListener;

public class WindowClosingListener implements WindowListener{

    private Core core;

    WindowClosingListener(Core core){
        this.core = core;
    }

    @Override
    public void windowClosing(WindowEvent e) {
        core.clickedWindowClose();
    }


    @Override
    public void windowOpened(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowClosed(WindowEvent e) {
        // TODO Auto-generated method stub
    }

    @Override
    public void windowIconified(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowDeiconified(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowActivated(WindowEvent e) {
        // TODO Auto-generated method stub

    }

    @Override
    public void windowDeactivated(WindowEvent e) {
        // TODO Auto-generated method stub

    }



}




BallControlComponet.java

package ball.view;

import java.awt.FlowLayout;
import javax.swing.JButton;
import javax.swing.JPanel;

import ball.controller.ButtonActionListener;


public class BallControlComponent {
    private JButton                playButton;
    private JButton             stopButton;

    public BallControlComponent() {
        playButton = new JButton("Play");
        stopButton = new JButton("Stop");
    }

    public void registerButtonActionListener(ButtonActionListener buttonActionListener) {
        playButton.addActionListener(buttonActionListener);
        stopButton.addActionListener(buttonActionListener);
    }

    public JPanel getPanel() {
        return initBallControlPanel();
    }

    private JPanel initBallControlPanel() {
        JPanel ballControllPanel = new JPanel();

        ballControllPanel.setLayout(new FlowLayout());
        ballControllPanel.add(playButton);
        ballControllPanel.add(stopButton);

        return ballControllPanel;
    }

}






BallCreationComponent.java

package ball.view;

import java.awt.FlowLayout;
import javax.swing.JButton;
import javax.swing.JComboBox;
import javax.swing.JLabel;
import javax.swing.JPanel;

import ball.controller.ButtonActionListener;


public class BallCreationComponent {

    private JButton                ballAddButton;
    private JButton                ballDeleteButton;
    private JComboBox<String>    ballColorComboBox;

    BallCreationComponent(){
        ballAddButton = new JButton("Ball +");
        ballDeleteButton = new JButton("Ball -");
        ballColorComboBox = new JComboBox<String>();

    }

    public void registerButtonActionListener(ButtonActionListener buttonActionListener) {
        ballAddButton.addActionListener(buttonActionListener);
        ballDeleteButton.addActionListener(buttonActionListener);
    }

    public JPanel getPanel() {
        return initBallCreationPanel();
    }

    private JPanel initBallCreationPanel() {
        JPanel ballCreationPanel = new JPanel();

        ballCreationPanel.setLayout(new FlowLayout());
        ballCreationPanel.add(new JLabel("볼 생성===>"));
        ballCreationPanel.add(ballColorComboBox);
        ballCreationPanel.add(ballAddButton);
        ballCreationPanel.add(ballDeleteButton);

        return ballCreationPanel;
    }

    public String getSelectedComboBoxItem() {
        return ballColorComboBox.getSelectedItem().toString();
    }

    public void addComboBoxItem(String ballGroupName) {
        if(ballColorComboBox.getItemCount()==0)
            ballColorComboBox.addItem(ballGroupName);
        else {
            boolean isSameName = false;
            for(int i=0; i<ballColorComboBox.getItemCount(); i++) {
                if(ballGroupName.equals(ballColorComboBox.getItemAt(i).toString())) {
                    isSameName = true;
                }
            }
            if(!isSameName)
            ballColorComboBox.addItem(ballGroupName);

        }
    }

    public int getBallColorComboBoxItemCount() {
        return ballColorComboBox.getItemCount();
    }

    public void removeComoboBoxItem() {
        ballColorComboBox.removeItem(ballColorComboBox.getSelectedItem());
    }

}




BallGroupCreationComponent.java

package ball.view;

import java.awt.FlowLayout;
import javax.swing.JButton;
import javax.swing.JComboBox;
import javax.swing.JLabel;
import javax.swing.JPanel;

import ball.controller.ButtonActionListener;


public class BallCreationComponent {

    private JButton                ballAddButton;
    private JButton                ballDeleteButton;
    private JComboBox<String>    ballColorComboBox;

    BallCreationComponent(){
        ballAddButton = new JButton("Ball +");
        ballDeleteButton = new JButton("Ball -");
        ballColorComboBox = new JComboBox<String>();

    }

    public void registerButtonActionListener(ButtonActionListener buttonActionListener) {
        ballAddButton.addActionListener(buttonActionListener);
        ballDeleteButton.addActionListener(buttonActionListener);
    }

    public JPanel getPanel() {
        return initBallCreationPanel();
    }

    private JPanel initBallCreationPanel() {
        JPanel ballCreationPanel = new JPanel();

        ballCreationPanel.setLayout(new FlowLayout());
        ballCreationPanel.add(new JLabel("볼 생성===>"));
        ballCreationPanel.add(ballColorComboBox);
        ballCreationPanel.add(ballAddButton);
        ballCreationPanel.add(ballDeleteButton);

        return ballCreationPanel;
    }

    public String getSelectedComboBoxItem() {
        return ballColorComboBox.getSelectedItem().toString();
    }

    public void addComboBoxItem(String ballGroupName) {
        if(ballColorComboBox.getItemCount()==0)
            ballColorComboBox.addItem(ballGroupName);
        else {
            boolean isSameName = false;
            for(int i=0; i<ballColorComboBox.getItemCount(); i++) {
                if(ballGroupName.equals(ballColorComboBox.getItemAt(i).toString())) {
                    isSameName = true;
                }
            }
            if(!isSameName)
            ballColorComboBox.addItem(ballGroupName);

        }
    }

    public int getBallColorComboBoxItemCount() {
        return ballColorComboBox.getItemCount();
    }

    public void removeComoboBoxItem() {
        ballColorComboBox.removeItem(ballColorComboBox.getSelectedItem());
    }

}




RollingBallView.java

package ball.view;

import java.awt.BorderLayout;
import java.awt.Color;

import javax.swing.BoxLayout;
import javax.swing.JFrame;
import javax.swing.JPanel;

import ball.controller.ButtonActionListener;
import ball.controller.WindowClosingListener;


public class RollingBallView extends JFrame{

    private JFrame                        frame;
    private BallControlComponent         ballControlComponent;
    private BallCreationComponent        ballCreationComponent;
    private BallGroupCreationComponent     ballGroupCreationComponent;

    public RollingBallView() {
        frame                         = new JFrame("공 굴리기");
        ballControlComponent         = new BallControlComponent();
        ballCreationComponent        = new BallCreationComponent();
        ballGroupCreationComponent    = new BallGroupCreationComponent();

        initFrame();
    }

    private void initFrame(){
        JPanel boxPanel = initBoxPanel();

        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.add(boxPanel,BorderLayout.CENTER);
        frame.pack();
        frame.setVisible(true);
        }

    private JPanel initBoxPanel() {
        JPanel boxPanel = new JPanel();

        boxPanel.setLayout(new BoxLayout(boxPanel, BoxLayout.Y_AXIS));
        boxPanel.add(ballControlComponent.getPanel());
        boxPanel.add(ballCreationComponent.getPanel());
        boxPanel.add(ballGroupCreationComponent.getPanel());

        return boxPanel;
    }

    public Color getSelectedGroupColor() {
        return ballGroupCreationComponent.getSelectedGroupColor();
    }


    public void registerButtonListener(ButtonActionListener buttonActionListener) {
        ballControlComponent.registerButtonActionListener(buttonActionListener);
        ballCreationComponent.registerButtonActionListener(buttonActionListener);
        ballGroupCreationComponent.registerButtonActionListener(buttonActionListener);
    }

    public String getSelectedGroup() {

        return ballCreationComponent.getSelectedComboBoxItem();
    }


    public String getNewBallGroupName() {
        return ballGroupCreationComponent.getBallGroupNameFromText();
    }


    public void addGroup(String newBallGroupName) {
        ballCreationComponent.addComboBoxItem(newBallGroupName);
    }


    public void removeGroup() {
        ballCreationComponent.removeComoboBoxItem();
    }


    public int getGroupCount() {
        return ballCreationComponent.getBallColorComboBoxItemCount();
    }

    public void registerWindowListener(WindowClosingListener windowClosingListener) {
        frame.addWindowListener(windowClosingListener);
    }
}














rollingBallServer프로젝트



ReceivedMessageThread.java

package ball.server;

import java.awt.Color;
import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.net.Socket;

import ball.controller.Core;


public class ReceivedMessageThread extends Thread{

    private Socket buttonViewSocket;
    private Core   core;

    @Override
    public void run() {
        super.run();

        try {
            BufferedReader receivedMessageBuffer = new BufferedReader(new InputStreamReader(buttonViewSocket.getInputStream()));

            String         receivedMessage;
            String[]     interpretedMessage;

            String         order;
            String         selectedColorString;
            String         ballGroupName;
            String         selectedBallGroup;

            while(true) {
                receivedMessage = receivedMessageBuffer.readLine();

                if(receivedMessage==null)
                    break;

                interpretedMessage = receivedMessage.split(" ");

                order                 = interpretedMessage[0];
                selectedColorString = interpretedMessage[1];
                ballGroupName        = interpretedMessage[2];
                selectedBallGroup    = interpretedMessage[3];

                Color selectedColor = Color.getColor(null, Integer.parseInt(selectedColorString));

                if(order.equals("play")) {
                    core.clickedPlay(selectedBallGroup);
                }
                else if(order.equals("stop")) {
                    core.clickedStop(selectedBallGroup);
                }
                else if(order.equals("addBall")) {
                    core.clickedAddBall(selectedBallGroup);
                }
                else if(order.equals("deleteBall")) {
                    core.clickedDeleteBall(selectedBallGroup);
                }
                else if(order.equals("createBallGroup")) {
                    core.clickedCreateBallGroup(selectedColor,ballGroupName);
                }
                else if(order.equals("deleteBallGroup")) {
                    core.clickedDeleteBallGroup(selectedBallGroup);
                }
                else
                    System.out.println("order error");

            }
            receivedMessageBuffer.close();
            buttonViewSocket.close();

        }catch (Exception e) {
            e.printStackTrace();
        }


    }


    public void setSocket(Socket buttonViewSocket) {
        this.buttonViewSocket = buttonViewSocket;

    }

    public void setCore(Core core) {
        this.core = core;
    }



}




Core.java

package ball.controller;

import java.awt.Color;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.Set;

import ball.data.Ball;
import ball.data.BallGroup;
import ball.data.BallGroupManager;
import ball.server.ReceivedMessageThread;
import ball.view.RollingBallView;

public class Core {
    private RollingBallView                     rollingBallView;
    private BallGroupManager                     ballGroupManager;


    public static final int WIDTH = 780;
    public static final int HEIGHT = 480;

    public Core() {
        rollingBallView = new RollingBallView();
        ballGroupManager = new BallGroupManager();

        this.setBallManager();
        this.initSocket();
        this.start();
    }

    private void initSocket() {
        System.out.println("draw 대기중");
        try {
            ServerSocket serverSocket         = new ServerSocket(8884);
            Socket remoteControllerSocket     = serverSocket.accept();

            ReceivedMessageThread receivedMessageThread = new ReceivedMessageThread();
            receivedMessageThread.setSocket(remoteControllerSocket);
            receivedMessageThread.setCore(this);
            receivedMessageThread.start();

        }catch (Exception e) {
            e.printStackTrace();
        }
    }


    private void setBallManager() {
        rollingBallView.setBallManager(ballGroupManager);
    }

    private void start() {

        while(true) {

            this.moveBallGroups();
            this.draw();

            try {
                Thread.sleep(10);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        }
    }

    private void moveBallGroups() {
        Set<String> ballGroupKeys = ballGroupManager.getBallGroupKeySet();

        for(String ballGroupKey : ballGroupKeys) {
            BallGroup ballGroup = ballGroupManager.getBallGroupByName(ballGroupKey);
            if(ballGroup.isPlay())
                moveBallGroup(ballGroup);
        }

    }

    private void moveBallGroup(BallGroup ballGroup) {
        Ball[] balls = ballGroup.getBalls();

        for(int i=0; i<balls.length;i++) {
            Ball ball = balls[i];
            moveBall(ball);
            reflectBall(ball);
        }
    }

    private void moveBall(Ball ball) {

            if(ball.isRight())
                ball.setBallPosX(ball.getBallPosX() + 1);
            else
                ball.setBallPosX(ball.getBallPosX() - 1);

            if(ball.isUp())
                ball.setBallPosY(ball.getBallPosY() + 1);
            else
                ball.setBallPosY(ball.getBallPosY() - 1);
    }

    private void reflectBall(Ball ball) {
            if(ball.getBallPosX() - 10 <=0 || ball.getBallPosX() + 10>= WIDTH)
                ball.setRight(!ball.isRight());
            if(ball.getBallPosY() - 10 <=0 || ball.getBallPosY() + 10>= HEIGHT)
                ball.setUp(!ball.isUp());
    }

    private void draw() {
        rollingBallView.draw();
    }

    public void clickedPlay(String selectedBallGroupName) {
        this.setPlay(true,selectedBallGroupName);
    }

    public void clickedStop(String selectedBallGroupName) {
        this.setPlay(false,selectedBallGroupName);
    }

    public void clickedAddBall(String selectedBallGroupName) {
        this.addBall(selectedBallGroupName);
    }

    public void clickedDeleteBall(String selectedBallGroupName) {
        this.deleteBall(selectedBallGroupName);
    }

    public void clickedCreateBallGroup(Color selectedColor, String newBallGroupName) {
        this.CreateBallGroup(selectedColor,newBallGroupName);
    }

    public void clickedDeleteBallGroup(String selectedBallGroupName) {
        this.DeleteBallGroup(selectedBallGroupName);
    }

    private void setPlay(boolean isPlay, String selectedBallGroupName) {
        if(ballGroupManager.getBallGroupsSize()!=0) {
            BallGroup selectedBallGroup = ballGroupManager.getBallGroupByName(selectedBallGroupName);
            selectedBallGroup.setPlay(isPlay);
        }
    }

    private void addBall(String selectedBallGroupName) {
        if(ballGroupManager.getBallGroupsSize()!=0) {
            BallGroup selectedBallGroup = ballGroupManager.getBallGroupByName(selectedBallGroupName);
            ballGroupManager.addBallToGroup(selectedBallGroup);
        }
    }

    private void deleteBall(String selectedBallGroupName) {
        if(ballGroupManager.getBallGroupsSize()!=0) {
            BallGroup selectedBallGroup = ballGroupManager.getBallGroupByName(selectedBallGroupName);
            ballGroupManager.removeBallfromGroup(selectedBallGroup);
        }
    }

    private void CreateBallGroup(Color selectedColor, String newBallGroupName) {
        ballGroupManager.addBallGroup(newBallGroupName, selectedColor);
    }


    private void DeleteBallGroup(String selectedBallGroupName) {
        if(ballGroupManager.getBallGroupsSize()!=0) {
            ballGroupManager.removeBallGroup(selectedBallGroupName);
        }
    }

    public static void main(String[] args) {
        new Core();
    }


}




Ball.java

package ball.data;

import java.util.Random;

import ball.controller.Core;


public class Ball {

    private int         PosX;
    private int         PosY;

    private boolean     isRight;
    private boolean     isUp;
    private boolean     isPlay;

    public boolean isPlay() {
        return isPlay;
    }


    public void setPlay(boolean isPlay) {
        this.isPlay = isPlay;
    }


    public Ball() {
        Random r = new Random();
        this.isRight = true;
        this.isUp = true;
        this.PosX = 10 + r.nextInt(Core.WIDTH-50);
        this.PosY = 10 + r.nextInt(Core.HEIGHT-50);
    }


    public int getBallPosX() {
        return PosX;
    }


    public void setBallPosX(int ballPosX) {
        this.PosX = ballPosX;
    }


    public int getBallPosY() {
        return PosY;
    }


    public void setBallPosY(int ballPosY) {
        this.PosY = ballPosY;
    }


    public boolean isRight() {
        return isRight;
    }


    public void setRight(boolean isRight) {
        this.isRight = isRight;
    }


    public boolean isUp() {
        return isUp;
    }


    public void setUp(boolean isUp) {
        this.isUp = isUp;
    }

}




BallGroup.java

package ball.data;

import java.awt.Color;
import java.util.LinkedList;

public class BallGroup {

    private LinkedList<Ball> ballList;
    private Color             color;
    private boolean          isPlay;

    public BallGroup(Color color) {
        ballList = new LinkedList<Ball>();
        this.color = color;
        this.isPlay = false;
    }

    public Color getColor() {
        return color;
    }

    public void setColor(Color color) {
        this.color = color;
    }

    public boolean isPlay() {
        return isPlay;
    }

    public void setPlay(boolean isPlay) {
        this.isPlay = isPlay;
    }

    public int getBallCount() {
        return ballList.size();
    }

    public void addBall(Ball ball) {
        ballList.add(ball);
    }

    public void removeBall() {
        ballList.remove();
    }

    public Ball[] getBalls(){
        return ballList.toArray(new Ball[ballList.size()]);
    }
}




BallGroupManager.java

package ball.data;

import java.awt.Color;
import java.util.LinkedHashMap;
import java.util.Set;

public class BallGroupManager {


    private LinkedHashMap<String, BallGroup> ballGroups;

    public BallGroupManager() {
        ballGroups = new LinkedHashMap<String, BallGroup>();
    }

    public void addBallGroup(String ballGroupKey, Color color) {
        BallGroup ballGroup = new BallGroup(color);
        ballGroups.put(ballGroupKey, ballGroup);
    }

    public BallGroup getBallGroupByName(String selectedBallGroupName) {
        return ballGroups.get(selectedBallGroupName);
    }

    public void addBallToGroup(BallGroup ballGroup) {
            Ball ball = new Ball();
            ballGroup.addBall(ball);
    }

    public void removeBallfromGroup(BallGroup ballGroup) {
        if(ballGroup.getBallCount()!=0)
            ballGroup.removeBall();
    }

    public void removeBallGroup(String selectedBallGroupName) {
        if(ballGroups.size()!=0)
            ballGroups.remove(selectedBallGroupName);
    }

    public Ball[] getBallsFromGroup(BallGroup ballGroup) {
        return ballGroup.getBalls();
    }

    public Set<String> getBallGroupKeySet() {
        return ballGroups.keySet();
    }

    public int getBallCount(BallGroup ballGroup) {
        return ballGroup.getBallCount();
    }

    public int getBallGroupsSize() {
        return ballGroups.size();
    }
}




BallDrawComponet.java

package ball.view;

import java.awt.Color;
import java.awt.Dimension;
import java.awt.Graphics;
import java.util.Set;
import javax.swing.JComponent;

import ball.controller.Core;
import ball.data.Ball;
import ball.data.BallGroup;
import ball.data.BallGroupManager;

public class BallDrawComponent extends JComponent {

    BallGroupManager ballGroupManager;

    public Dimension getPreferredSize() {
        return new Dimension(Core.WIDTH,Core.HEIGHT);
    }

    @Override
    public void paint(Graphics g) {

        g.setColor(Color.BLACK);
        g.fillRect(0, 0, Core.WIDTH, Core.HEIGHT);

        Set<String> ballGroupKeys = ballGroupManager.getBallGroupKeySet();

        for(String ballGroupKey : ballGroupKeys) {
            BallGroup ballGroup = ballGroupManager.getBallGroupByName(ballGroupKey);

            Ball[] balls = ballGroup.getBalls();
            for(int i=0; i<ballGroup.getBallCount(); i++) {
                g.setColor(ballGroup.getColor());
                g.fillOval(balls[i].getBallPosX()-10, balls[i].getBallPosY()-10, 20, 20);
            }
        }
    }

    public void setBallGroupManager(BallGroupManager ballGroupManager) {
        this.ballGroupManager = ballGroupManager;
    }


}




RollingBallView.java

package ball.view;

import java.awt.BorderLayout;

import javax.swing.BoxLayout;
import javax.swing.JFrame;
import javax.swing.JPanel;

import ball.data.BallGroupManager;

public class RollingBallView extends JFrame{

    private JFrame                        frame;
    private BallDrawComponent            ballDrawComponent;

    public RollingBallView() {
        frame                         = new JFrame("공 굴리기");
        ballDrawComponent             = new BallDrawComponent();

        initFrame();
    }

    private void initFrame(){
        JPanel boxPanel = initBoxPanel();

        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.add(boxPanel,BorderLayout.CENTER);
        frame.pack();
        frame.setVisible(true);
    }

    private JPanel initBoxPanel() {
        JPanel boxPanel = new JPanel();

        boxPanel.setLayout(new BoxLayout(boxPanel, BoxLayout.Y_AXIS));
        boxPanel.add(ballDrawComponent);

        return boxPanel;
    }


    public void setBallManager(BallGroupManager ballGroupManager) {
        ballDrawComponent.setBallGroupManager(ballGroupManager);
    }

    public void draw() {
        ballDrawComponent.repaint();
    }

}






스트림은 데이터의 통로 역할이라고 생각하면 편한다.



InputStream        ====> byte단위로 읽는다

(Applications that need to define a subclass of InputStream must always provide a method that returns the next byte of input. )



InputStramReader ====> char단위로 읽는다.

(An InputStreamReader is a bridge from byte streams to character streams)



BufferedReader     ====> data를 모았다가 newLine이 발생되면 보낸다.

(Reads text from a character-input stream )





서버와 통신을 할 때 서브 스레드를 만들어서 통신을 했다.

통신을 하다보니 nullpointException이 제일 골치아팠다. 이것 때문에 디버깅을 2시간은 한 것 같다..













통신 사용법

Server는

socket을 이용해 line을 받는다.
라인은 order + selectedColor + newBallGroupName + selectedBallGroupName으로 되어있는데

selectedColor는 int 나머지는 String 타입이다

order : "Play", "Stop", "Ball +", "Ball -", "Group 생성", "Group 삭제" (String 값)
selectedColor : 새로 만들 그룹의 색 RGB형식의 Color
newBallGroupName : 새로 만들 그룹의 이름 (String)
selectedBallGroupName : Play, Stop Ball+ Ball - 등을 실행할 그룹 (String)

각 메세지들은 " " space로 구분해서 받는다.

ex) "Play -63633 redballs blueballs"

위의 스트링중 필요한 Message만 받아서 사용함.
